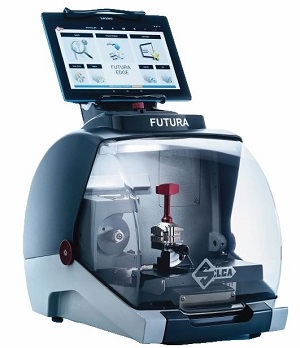

Futura Edge Electronic Key Cutting Machine

---

Item Number: ILCFUTURAEDGE

Description

The Futura Edge Electronic Key Cutting Machine is a one cutting station for all types of edge-cut keys. The Futura Edge will easily duplicate by copying from the original key, by indirect code or by direct code. This model is powerful enough for the professional and ideal for inexperienced users thanks to the software-guided procedures.

Controlled by a removable 10" (254mm) touch-screen tablet, the Futura Edge guides the user step-by-step in all key cutting operations: for example, in selecting the make, model and year for automotive keys, in the choice of the right clamp, how to load the key, etc.

The patented laser reading of the key profile makes the Futura the only electronic machine in the market that allows you to duplicate a flat key without first searching for the relevant cutting card.

Features

• Nickel plated, 4-sided clamp with a patented, precise rotation system
• LED color changing lights indicate the status of the cutting process: white - ready to proceed, yellow - process of cutting, green - cutting is complete
• Wi-Fi link between machine and tablet or the user can tether the tablet directly to the machine
• Two USB ports; one for tablet recharge and one for the tethering connection so the machine and tablet remain connected and operational even when the Wi-Fi connection is lost or unstable. The second USB port can also be used to connect the supplied USB flash drive to import code tables or machine software updates
• Optional code maker software allows users to create custom cutting cards for standard edge cut keys
• Fast cutting cycles plus tablet and electronics that deliver fast start up and response times between the tablet and the machine
• Exposed screws are stainless steel for wear resistance and longevity
• Shortcut function for vehicle key cutting code searches eliminates manual entry
• Built-in tool/accessory tray on top of the machine
• Kreate-A-Key/Instacode Interface is included
• Compact, lightweight and portable with ergonomic grip for easy lifting
• Mounting bracket included for securing the machine to the counter; perfect for mobile operations
• Safety shield slides within the machine body
• Removable tablet stand can be locked onto the hood of the machine or placed on the counter
• Transparent safety shield contains chips and isolates moving parts
• All operations are disabled automatically when safety shield is retracted
• Large emergency stop button on side of machine
• Multi-language support

Includes

• ILCD747276ZR - Edge Cutter 01F
• ILCD942846ZR - 01V Clamp for Edge Cut Keys
• Stop 4 Tool
• Stop Bars
• USB Pen
• Brush
• Mounting Bracket
• Stylus Touch Pen
• Z3 Calibration Keys
• Tools
• Hex Wrenches
• Spare Fuses

Warranty

Two years (machine and tablet)

Product Specifications

• Motors: 24V d.c., 5.5 Amp, 130W
• Power Supply: 90/264V a.c.-50/60Hz
• Total Speed: 1500 RPM
• Movements: 2 axes driven by step motors on rectified roller guides
• Carriage Runs: Axis X 1.18" (30mm) x Axis Y 1.97" (50mm)
• Dimensions: 12.52"W x 16.26"D x 20.47"H (with tablet), 13.38"H (without tablet)
• Software Interface: Instacode/Kreate-A-Key
• Weight: 35.3 lbs (16 kg)
