ACX2180 R134a Refrigerant Handling System

---

Item Number: RTI4608044700

This machine meets Nissan/Infiniti Essential Tool requirements for servicing R134a vehicles only if purchased with the RTI3608326900 printer installation kit.

Description

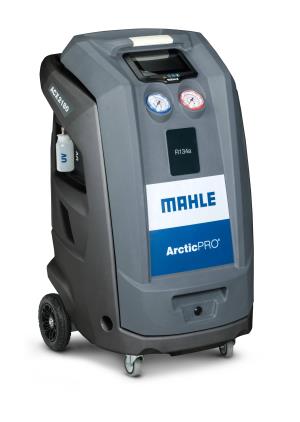

The ArcticPRO ACX2180 R134a Refrigerant Handling System offers the ultimate in refrigerant recycling machines. This unit delivers a unique service door that is ergonomic in its design and an intuitive, state of the art user interface providing an optimal environment for fully automatic A/C service and simple unit maintenance.

Nissan North America requirements on R-134A Machines mandate any machine that meets SAE J2788 and UL 1963.

Features

• State-of-the-Art - Ergonomic design, 7" capacitive touch screen and intuitive user interface sets a new industry standard.
• Extra Transducers - Contains three transducers, providing reduced process times over dual sensor units.
• Status Indicator - LED light indicates status visible from anywhere in the workshop.
• Smart - iOS and Android capable phone app allowing remote service session mirroring and advanced functions.
• Best In Class Serviceability - New ergonomic hinged service door simplifies unit service.
• Status Indicator - LED light indicates status visible from anywhere in the workshop.
• Automatic Updates - Permanent wireless software updates, ensuring you always have the latest features.
• Oil System Management - Automatic weighing of recovered oil, allowing accurate replenishment of oil removed during service and allows two oil types for injection.
• UV Dye Injection - Integrated UV dye injection provides high level of A/C system leak detection.
• Remote Support for Technicians - Allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support.
• Data Management & Reporting Metrics - Ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
• Customer Service - Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage.
• Network Printing - Retains valuable service records, network printing capability to print services provided for customer.

Accessories

RTI02680785 Dust Cover
RTI3608326900  Mahle AC Machine Printer Installation Kit

Warranty

Two years

Users Guide

Product Specifications

• Certifications: SAE J2788, SAE J2099, UL 1963
• Charge Performance: +/- 0.5 oz. at 70° to 75°F (+/- 15g at 21° to 24°C)
• Recovery Performance: 95% at 70° to 75°F (21° to 24°C) within 30 minutes
• Operation: Fully automatic
• Charging Cylinder: 30 lb. (13.6 kg) DOT
• Compressor: 3/8 HP-0.279kW
• Display: Color, 7” Capacitive Touch Screen
• Filter Drier Capacity: 150 lb. (68 kg) spin-on type
• Hoses: 9' (2.75 m)
• Hybrid Function: ACX2180H only
• Languages: English, French, Spanish
• Operating Ranges: 50° to 122° F (10° to 50° C)
• Power Source: 120 VAC - 60 HZ - 12 AMP
• Vacuum Pump : 2 CFM dual stage
• Dimensions: 47"H x 29"W x 29"D (119 cm x 74 cm x 74 cm)
• Weight: 215 lbs. (98 kg)
